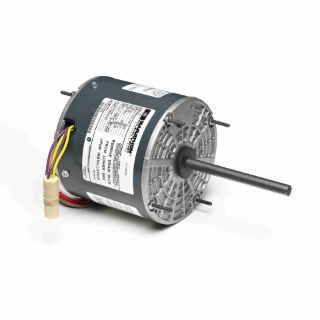

X076 MAR

Name: X076 MAR
Brand: Marathon Electric Motors
SKU: X076 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

X076

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

048A11T11006

Features

Automatic reset thermal protector Weather resistant reversing plug Reversible by reconnection 36” long leads, Extended thru-bolts, 8-32 1/2” on drive end, 3/4” on non-drive end Shaft slinger Four Locating screws on frame, 90O apart 1/2” x 5” long shaft with two flats 4.50” 90O apart Capacitor not included, see Accessories section

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	11.30
CE:	N
Connection Drawing Number:	6906494
Country of Origin:	Mexico
CSA:	Y
Current:	2.6-2.5
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	71.8
Electrical Type:	Permanent Split Capacitor
Enclosure Type:	Totally Enclosed Air Over
Frame Length (IN):	5.
Frame Material:	Rolled Steel
Frame Size:	48
Frame Suffix:	Z
Frame Type:	48Z
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	0.50
Insulation Class:	B
IP Code:	43
KVA Code:	C
Max Ambient:	60°C
Motor Orientation:	Horizontal
Mounting Type:	Round - Extended Studs
NEMA Design:	NO DESIGN CODE
Number of Poles:	6
Number of Speeds:	2
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS403362-500
Phases:	1
Power Factor:	95.5
Power Rating (HP):	0.50
Power Rating (kW):	0.37
Resistance Main:	0
Rotation:	Selective Counterclockwise
Service Factor:	1
Shaft Diameter (IN):	0.500
Shaft Extension:	5.06
Shaft Type:	Single Special Extension
Speed:	1075
Speed Max:	1075
Starting Type:	Across The Line
Type of Overload Protector:	Automatic Lock Rotor Only
UL:	Recognized
Voltage:	208-230
