X080 MAR

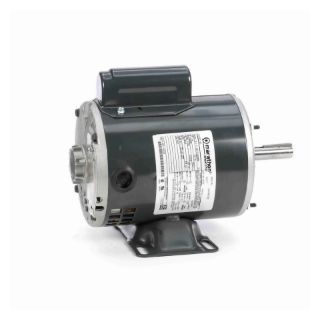

Picture of X080 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
048A11O2030
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

6-Pole Continuous Duty

Description

Marathon® AC Motor, 6-Pole Continuous Duty, Condenser Fan Motors Application, 0.25 hp, 208 to 230 VAC, 1.9 to 1.45 A, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 1 Speed, OPAO Enclosure, 48Z Frame, 0.5 in Dia x 6.06 in L Shaft, CCW Rotation, 1 Service Factor, Ball Bearing, 30.6 ft-lb Torque, Round/Extended Studs Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 11.25 in L x 5.63 in W

Standards

CSA Certified | UL Listed

Features

  • Weather resistant reversing plug
  • 30 in long leads
  • Shaft slinger
  • 1-5/8 in extended thru-bolts on shaft end
  • Automatic reset thermal protection
  • Permanent split capacitor

Specifications

Amperage Rating:1.9 to 1.45 A
Application Type:Condenser Fan Motors
Bearing Type:Ball
Country of Origin:MX
Dimensions:11.25 in L x 5.63 in W
Enclosure Type:OPAO
Frame:48Z
Frequency Rating:60 Hz
Horsepower:0.25 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Round/Extended Studs
Number of Speeds:1
Phase:1 ph
Rotation:CCW
Service Factor:1
Shaft Size:0.5 in Dia x 6.06 in L
Speed:1075 rpm
Temperature Rating:40 deg C
Torque Rating:30.6 ft-lb
Voltage Rating:208 to 230 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Open Air Over
Frequency Rating
60
Horsepower
1/4 HP
Speed Rating
1075
Type
Permenant Split Capacitor
Voltage Rating
208-230
