X088 MAR

Name: X088 MAR
Brand: Marathon Electric Motors
SKU: X088 MAR
Availability: OutOfStock

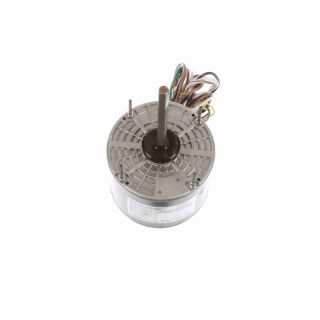

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

X088

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

048A11O2032

Features

Frame and shaft end bracket enclosed Single speed model Weather resistant reversing plug 30” long leads Shaft with flat Shaft slinger 1-5/8” Extended thru-bolts on shaft end Automatic reset thermal protection Lug mount kits and other accessories available, see Accessories section

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	11.69
CE:	N
Connection Drawing Number:	6906496
Country of Origin:	Mexico
CSA:	Y
Current:	2.2-2.0
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	64
Electrical Type:	Permanent Split Capacitor
Enclosure Type:	Open Air Over
Frame Length (IN):	4.25
Frame Material:	Rolled Steel
Frame Size:	48
Frame Suffix:	Y
Frame Type:	48Y
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	0.33
Insulation Class:	B
IP Code:	10
KVA Code:	D
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Round - Extended Studs
NEMA Design:	NO DESIGN CODE
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS74113-425
Phases:	1
Power Factor:	85.6
Power Rating (HP):	0.33
Power Rating (kW):	0.25
Resistance Main:	0
Rotation:	Selective Counterclockwise
Service Factor:	1
Shaft Diameter (IN):	0.500
Shaft Extension:	6.06
Shaft Type:	Single Special Extension
Speed:	1075
Speed Max:	1075
Starting Type:	Across The Line
Type of Overload Protector:	Automatic Lock Rotor Only
UL:	Recognized
Voltage:	208-230
