X1001 MAR

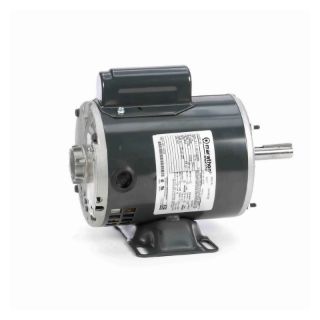

Picture of X1001 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
048A11OB1799
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

6-Pole Continuous Duty

Description

Marathon® AC Motor, 6-Pole Continuous Duty, Fan & Blower Motors Application, 1/4 hp, 208 to 230 VAC, 1.6 to 1.5 A, 60 Hz Frequency, 1 ph ph, 1075 rpm Speed, OPAO Enclosure, 48Z Frame, 1/2 in Dia x 4 in L Shaft, Selective CCW Rotation, 1 Service Factor, Sleeve Bearing, 18.7 ft-lb Torque, Extended Stud/Resilient Ring Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 5.66 in Dia Dimensions

Standards

CSA Certified | UL Listed

Features

  • Open frame and brackets
  • Grommeted lead exit
  • Automatic reset thermal protection
  • 30 in long leads
  • Extended thru-bolts on shaft end
  • Weather resistant reversing plug
  • 2-1/4 in resilient ring mounting
  • Permanent split capacitor

Includes

2-1/2 in Adapter Rings

Specifications

Amperage Rating:1.6 to 1.5 A
Application Type:Fan & Blower Motors
Bearing Type:Sleeve
Country of Origin:CN
Dimensions:5.66 in Dia
Enclosure Type:OPAO
Frame:48Z
Frequency Rating:60 Hz
Horsepower:1/4 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Extended Stud/Resilient Ring
Phase:1 ph
Rotation:Selective CCW
Service Factor:1
Shaft Size:1/2 in Dia x 4 in L
Speed:1075 rpm
Temperature Rating:40 deg C
Torque Rating:18.7 ft-lb
Voltage Rating:208 to 230 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Open Air Over
Frequency Rating
60
Horsepower
1/4 HP
Speed Rating
1075
Type
Permenant Split Capacitor
Voltage Rating
208-230
