X205 MAR

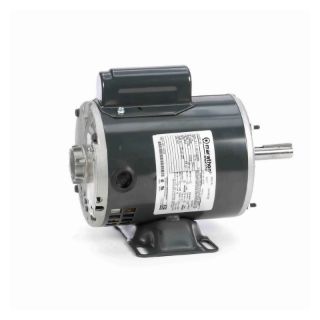

Picture of X205 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
056A11O5312
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

6-Pole Continuous Duty

Description

Marathon® AC Motor, 6-Pole Continuous Duty, 0.75 hp, 208 to 230 VAC, 1.3 to 1.8/0.8 to 0.9 A, 60 Hz Frequency, 1 ph, 3450 rpm Speed, OPAO Enclosure, 56Z Frame, 5/8 in Dia Shaft, Fixed CCW Rotation, 1 Service Factor, Ball Bearing, Resilient Base Mounting, 60 deg C, Insulation Class: Class B, Rolled Steel, 6-1/2 in W

Standards

CE | CSA Certified | UL Listed

Features

Permanent split capacitor

Specifications

Amperage Rating:1.3 to 1.8/0.8 to 0.9 A
Bearing Type:Ball
Country of Origin:MX
Dimensions:6-1/2 in W
Enclosure Type:OPAO
Frame:56Z
Frequency Rating:60 Hz
Horsepower:0.75 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Resilient Base
Phase:1 ph
Rotation:Fixed CCW
Service Factor:1
Shaft Size:5/8 in Dia
Speed:3450 rpm
Temperature Rating:60 deg C
Voltage Rating:208 to 230 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Open Air Over
Frequency Rating
60
Horsepower
3/4 HP
Speed Rating
1075
Type
Permenant Split Capacitor
Voltage Rating
208-230
