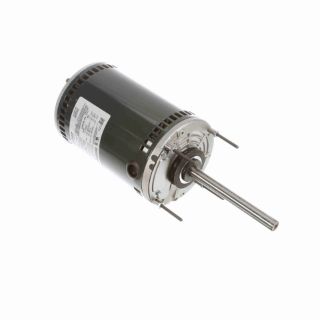

X208 MAR

Name: X208 MAR
Brand: Marathon Electric Motors
SKU: X208 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

X208

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056A8O5

Features

Frame and shaft end bracket enclosed Single speed model Weather resistant reversing plug 30” long leads Shaft with flat Shaft slinger 1-5/8” Extended thru-bolts on shaft end Automatic reset thermal protection Lug mount kits and other accessories available, see Accessories section Resilient ring mount, base not included

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	15.50
CE:	N
Connection Drawing Number:	A-EE9022MV
Country of Origin:	Mexico
CSA:	Y
Current:	3.4
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	59.5
Electrical Type:	Permanent Split Capacitor
Enclosure Type:	Drip Proof Air Over
Frame Length (IN):	7.5
Frame Material:	Rolled Steel
Frame Size:	56
Frame Suffix:	Z
Frame Type:	56Z
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	0.50
Insulation Class:	B
IP Code:	22
KVA Code:	B
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Resilient Ring - Extended Studs
NEMA Design:	NO DESIGN CODE
Number of Poles:	8
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS75594-750
Phases:	1
Power Factor:	83
Power Rating (HP):	0.50
Power Rating (kW):	0.37
Rotation:	Selective Counterclockwise
Service Factor:	1
Shaft Diameter (IN):	0.625
Shaft Extension:	6
Shaft Type:	Single Special Extension
Speed:	825
Speed Max:	825
Starting Type:	Across The Line
Type of Overload Protector:	Automatic Lock Rotor Only
UL:	Recognized
Voltage:	208-230

Resources

Spec Sheet
