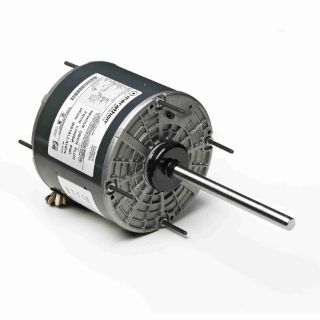

X212 MAR

Name: X212 MAR
Brand: Marathon Electric Motors
SKU: X212 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

X212

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

048A11O1065

Single Split Phase Open Air Over Capacitor not included, see accessories section Fixed CCW rotation, viewing opposite shaft of motor

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	10.69
CE:	N
Connection Drawing Number:	6906494
Country of Origin:	Mexico
CSA:	Y
Current:	1.1
DE Bearing Size:	6203
DE Bearing Type:	Sleeve
Duty:	Continous
Efficiency:	54.4
Electrical Type:	Permanent Split Capacitor
Enclosure Type:	Open Air Over
Frame Material:	Rolled Steel
Frame Size:	48
Frame Suffix:	Y
Frame Type:	48Y
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	0.17
Insulation Class:	B
IP Code:	10
KVA Code:	B
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Three Lug Mount
NEMA Design:	NO DESIGN CODE
Number of Poles:	6
Number of Speeds:	3
ODE Bearing Size:	6203
ODE Bearing Type:	Sleeve
Outline Drawing Number:	A-SS73765-338
Phases:	1
Power Factor:	97.4
Power Rating (HP):	0.17
Power Rating (kW):	0.13
Rotation:	Fixed Counterclockwise
Service Factor:	1
Shaft Diameter (IN):	0.500
Shaft Extension:	2.75/4
Shaft Type:	Special Extension Both Sides
Speed:	1100
Speed Max:	1100
Starting Type:	Across The Line
Type of Overload Protector:	Automatic Lock Rotor Only
UL:	Recognized
Voltage:	230
