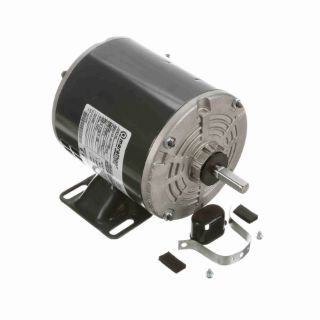

X262 MAR

Name: X262 MAR
Brand: Marathon Electric Motors
SKU: X262 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

X262

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

048A11D245

Open end bracket Automatic reset thermal protection Ball bearings 50°C Ambient Welded rigid base UL recognized and CSA certified

Assembly/Box Mounting:	F2 Only
C Dim (IN):	8.94
CE:	N
Connection Drawing Number:	9580191
Country of Origin:	Mexico
CSA:	Y
Current:	1.9-1.8
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	68
Electrical Type:	Permanent Split Capacitor
Enclosure Type:	Drip Proof
Frame Length (IN):	5.25
Frame Material:	Rolled Steel
Frame Size:	48
Frame Suffix:	Z
Frame Type:	48Z
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	0.25
Insulation Class:	F
IP Code:	22
KVA Code:	C
Max Ambient:	50°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	NO DESIGN CODE
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS403318-525
Phases:	1
Power Factor:	92
Power Rating (HP):	0.25
Power Rating (kW):	0.19
Resistance Main:	0
Rotation:	Selective Counterclockwise
Service Factor:	1
Shaft Diameter (IN):	0.500
Shaft Extension:	1.69
Shaft Type:	Single Special Extension
Speed:	1075
Speed Max:	1075
Starting Type:	Across The Line
Type of Overload Protector:	Automatic Lock Rotor Only
UL:	Recognized
Voltage:	208-230
