X264 MAR

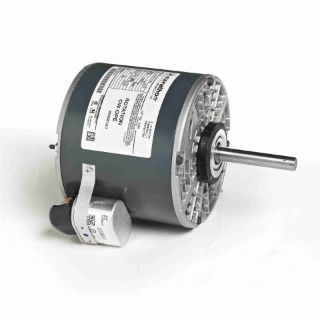

Picture of X264 MAR

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

X264

CBT Inventory

0

Vendor Inventory

Loading...

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

048A11O11040

Features

Open end bracket Ball Bearings Automatic reset thermal protector BX connector included in frame 12” cord and molded plug Capacitor included

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	8.31
CE:	N
Connection Drawing Number:	SEE OUTLINE
Country of Origin:	United States of America
CSA:	Y
Current:	0.80
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	57.5
Electrical Type:	Permanent Split Capacitor
Enclosure Type:	Open Air Over
Frame Material:	Rolled Steel
Frame Size:	48
Frame Type:	48
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	0.25
Insulation Class:	B
IP Code:	01
KVA Code:	D
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Round Belly Band
NEMA Design:	NO DESIGN CODE
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS403347-400
Phases:	1
Power Factor:	90.5
Power Rating (HP):	0.25
Power Rating (kW):	0.19
Rotation:	Fixed Counterclockwise
Service Factor:	1
Shaft Diameter (IN):	0.500
Shaft Extension:	1.5
Shaft Type:	Single Special Extension
Speed:	1075
Speed Max:	1075
Starting Type:	Across The Line
Type of Overload Protector:	Automatic Lock Rotor Only
UL:	Recognized
Voltage:	460
