X271 MAR

Name: X271 MAR
Brand: Marathon Electric Motors
SKU: X271 MAR
Availability: OutOfStock

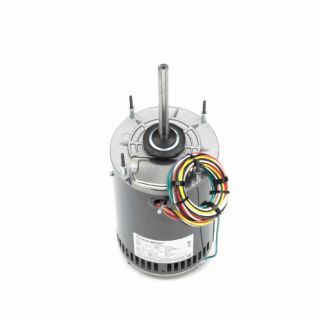

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

X271

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056A11O5305

Features

Enclosed shaft end bracket with vented frame 30” long leads Shaft slinger 60°C ambient Automatic reset thermal protector Flat & keyway on shaft Capacitor not included, see Accessories section 1" thru-bolts, shaft end

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	17.53
CE:	N
Connection Drawing Number:	102009-4
Country of Origin:	Mexico
CSA:	Y
Current:	7.8-7.7/3.9
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	74.2
Electrical Type:	Permanent Split Capacitor
Enclosure Type:	Open Air Over
Frame Length (IN):	9.6
Frame Material:	Rolled Steel
Frame Size:	56
Frame Suffix:	Z
Frame Type:	56Z
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	1.50
Insulation Class:	B
IP Code:	10
KVA Code:	F
Max Ambient:	60°C
Motor Orientation:	Horizontal
Mounting Type:	Resilient Ring - Extended Studs
NEMA Design:	NO DESIGN CODE
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-100235-906
Phases:	1
Power Factor:	85.5
Power Rating (HP):	1.50
Power Rating (kW):	1.1
Resistance Main:	0
Rotation:	Selective Counterclockwise
Service Factor:	1
Shaft Diameter (IN):	0.625
Shaft Extension:	6.09
Shaft Type:	Single Special Extension
Speed:	1075
Speed Max:	1075
Starting Type:	Across The Line
Type of Overload Protector:	Automatic
UL:	Recognized ( Not Protector)
Voltage:	208-230/460
