X274 MAR

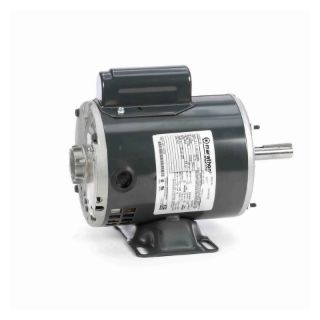

Picture of X274 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
048A11T407
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

6-Pole Continuous Duty

Description

Marathon® AC Motor, 6-Pole Continuous Duty, 0.2 hp, 230 VAC, 1.4 A, 60 Hz Frequency, 1 ph, 3250 rpm Speed, Totally Enclosed Air Over Enclosure, 48Y Frame, 0.5 in Dia x 4.19 in L Shaft, Fixed CW Rotation, 1 Service Factor, Ball Bearing, Round/Extended Studs Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 8.38 in L x 7.03 in W

Standards

CSA Certified | UL Listed

Features

Permanent split capacitor

Specifications

Amperage Rating:1.4 A
Bearing Type:Ball
Country of Origin:US
Dimensions:8.38 in L x 7.03 in W
Enclosure Type:Totally Enclosed Air Over
Frame:48Y
Frequency Rating:60 Hz
Horsepower:0.2 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Round/Extended Studs
Phase:1 ph
Rotation:Fixed CW
Service Factor:1
Shaft Size:0.5 in Dia x 4.19 in L
Speed:3250 rpm
Temperature Rating:40 deg C
Voltage Rating:230 VAC
