X307 MAR

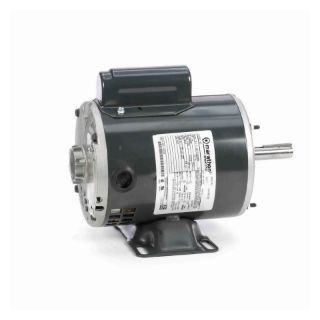

Picture of X307 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
048A11T2006
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

6-Pole Continuous Duty

Description

Marathon® AC Motor, 6-Pole Continuous Duty, Application Type: Unit Heater Motors, 0.25 hp, 115 VAC, 4.1 A, 60 Hz, 1 ph, 1075 rpm, Totally Enclosed Air Over, 48Z Frame, 0.5 in Dia x 2.81 in L Shaft, Selective CCW, Service Factor: 1, Ball Bearing, 25.5 ft-lb, Resilient Base/Extended Studs Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 8.5 in L x 6.48 in W x 7.16 in H

Standards

CSA Certified | UL Listed

Features

Permanent split capacitor

Specifications

Amperage Rating:4.1 A
Application Type:Unit Heater Motors
Bearing Type:Ball
Country of Origin:MX
Dimensions:8.5 in L x 6.48 in W x 7.16 in H
Enclosure Type:Totally Enclosed Air Over
Frame:48Z
Frequency Rating:60 Hz
Horsepower:0.25 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Resilient Base/Extended Studs
Phase:1 ph
Rotation:Selective CCW
Service Factor:1
Shaft Size:0.5 in Dia x 2.81 in L
Speed:1075 rpm
Temperature Rating:40 deg C
Torque Rating:25.5 ft-lb
Voltage Rating:115 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Totally Enclosed Air Over
Frequency Rating
60
Horsepower
1/4 HP
Speed Rating
1075
Type
Permenant Split Capacitor
Voltage Rating
115
