X416 MAR

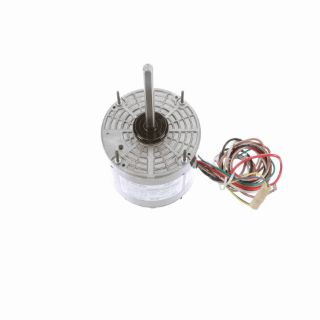

Picture of X416 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
X416
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

048A11T2013

Features

Frame and end brackets enclosed Multi-speed model 30” long leads, Shaft slinger Weather resistant reversing plug 1-1/4” Thru-bolts on shaft end, 1” thru-bolts on lead end Automatic reset thermal protector Weep holes with removable plugs on end brackets. Remove bottom plug after installation Lug mount kits and other accessories available (see Accessories section) Capacitor not included, see Accessories section

Specifications

Assembly/Box Mounting:F1 ONLY
C Dim (IN):12.00
CE:N
Connection Drawing Number:6906494
Country of Origin:Mexico
CSA:Y
Current:4.2
DE Bearing Size:6203
DE Bearing Type:Ball
Duty:Continous
Efficiency:67
Electrical Type:Permanent Split Capacitor
Enclosure Type:Totally Enclosed Air Over
Frame Length (IN):5.
Frame Material:Rolled Steel
Frame Size:48
Frame Suffix:Y
Frame Type:48Y
Frequency:60
Harmonized Tariff Code:8501.40.4040
HP:0.50
Insulation Class:B
IP Code:43
KVA Code:D
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Round - Extended Studs
NEMA Design:NO DESIGN CODE
Number of Poles:6
Number of Speeds:2
ODE Bearing Size:6203
ODE Bearing Type:Ball
Outline Drawing Number:A-SS74409-500
Phases:1
Power Factor:91.5
Power Rating (HP):0.50
Power Rating (kW):0.37
Resistance Main:0
Rotation:Selective Counterclockwise
Service Factor:1
Shaft Diameter (IN):0.500
Shaft Extension:6.06
Shaft Type:Single Special Extension
Speed:1075
Speed Max:1075
Starting Type:Across The Line
Type of Overload Protector:Automatic Lock Rotor Only
UL:Recognized
Voltage:208-230

Resources

Engineering DrawingSpec Sheet
