X445 MAR

Name: X445 MAR
Brand: Marathon Electric Motors
SKU: X445 MAR
Availability: OutOfStock

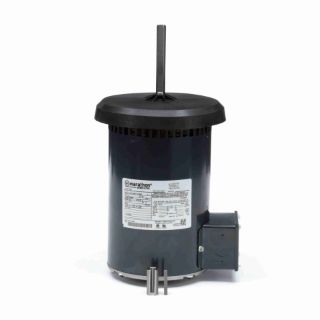

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

X445

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

048A11O1732

Features

Open frame and end brackets Shaft with flat, unless otherwise noted Unique Rain Shield fits over shaft to protect motor in vertical shaft up position Shaft slinger Automatic reset thermal protector 60°C ambient (as noted) Ball bearings UL Recognized and CSA Certified Capacitor not included, see Accessories section

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	10.44
Connection Drawing Number:	SEE OUTLINE
Country of Origin:	United States of America
CSA:	Y
Current:	3-2.8/1.4
DE Bearing Type:	BALL
Duty:	CONT. AOM
Electrical Type:	PSC 1 SPEED
Enclosure Type:	OPAO
Frame Material:	ROLLED STEEL
Frame Size:	48
Frame Suffix:	Y
Frame Type:	48Y
Frequency:	60
Harmonized Tariff Code:	8501.40.3040
Insulation Class:	B
IP Code:	01
KVA Code:	D
Max Ambient:	40°C
Motor Orientation:	HORIZONTAL
Mounting Type:	ROUND BELLY BAND
NEMA Design:	No Design Code
Number of Poles:	6
ODE Bearing Type:	BALL
Outline Drawing Number:	A-SS75675-500
Phases:	1
Power Rating (HP):	SPL
Resistance Main:	0
Rotation:	SELECTIVE CCW
Service Factor:	1
Shaft Diameter (IN):	.5
Shaft Extension:	4
Shaft Type:	SGL SPL EXT
Speed:	1075
Speed Max:	1075
Starting Type:	ACROSS THE LINE
Type of Overload Protector:	AUTOMATIC
UL:	None
Voltage:	200-230/460
