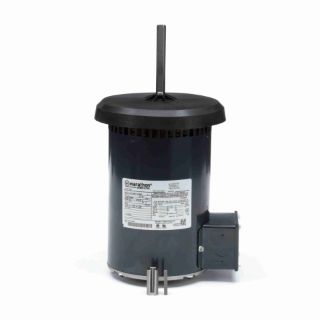

X449 MAR

Name: X449 MAR
Brand: Marathon Electric Motors
SKU: X449 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

X449

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056A11O5315

Features

Open frame and end brackets Shaft with flat Unique Rain Shield fits over shaft to protect motor in vertical shaft up position Shaft slinger Automatic reset thermal protector Capacitor not included, see Accessories section Ball bearings UL Recognized and CSA Certified?° C ambient

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	14.97
CE:	N
Connection Drawing Number:	A-102009-14
Country of Origin:	United States of America
CSA:	Y
Current:	7.0/3.5
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	72
Electrical Type:	Permanent Split Capacitor
Enclosure Type:	Open Air Over
Frame Material:	Rolled Steel
Frame Size:	56
Frame Suffix:	Z
Frame Type:	56Z
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	1.50
Insulation Class:	B
IP Code:	10
KVA Code:	B
Max Ambient:	60°C
Motor Orientation:	Horizontal
Mounting Type:	Round Belly Band
NEMA Design:	No Design Code
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-104109-856
Phases:	1
Power Factor:	95
Power Rating (HP):	1.50
Power Rating (kW):	1.1
Rotation:	Selective Counterclockwise
Service Factor:	1
Shaft Diameter (IN):	0.625
Shaft Extension:	4
Shaft Type:	Single Special Extension
Speed:	1075
Speed Max:	1075
Starting Type:	Across The Line
Type of Overload Protector:	Automatic
UL:	Recognized ( Not Protector)
Voltage:	200-230/460
