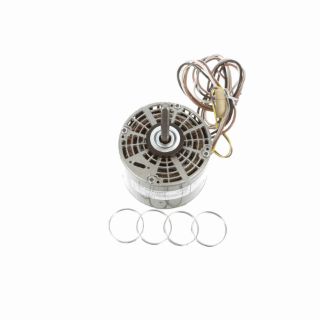

X474 MAR

Name: X474 MAR
Brand: Marathon Electric Motors
SKU: X474 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

X474

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

048A11O1047

Features

Open frame and brackets Heavy gauge steel frame and base Shaft with flat, 70°C ambient 37” Leads Thermal overload protection 1/4” terminals on the capacitor leads 2 1/4” resilient rings, includes 2 1/2” expanders Capacitor not included, see Accessories section

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	9.25
CE:	N
Connection Drawing Number:	6906496
Country of Origin:	Mexico
CSA:	Y
Current:	2.0
DE Bearing Size:	6203
DE Bearing Type:	BALL
Duty:	Continuous
Efficiency:	52.5
Electrical Type:	Permanent Split Capacitor
Enclosure Type:	Open Air Over
Frame Length (IN):	3.75
Frame Material:	Rolled Steel
Frame Size:	48
Frame Suffix:	Y
Frame Type:	48Y
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	0.25
Insulation Class:	B
IP Code:	10
KVA Code:	C
Max Ambient:	40°C
Motor Orientation:	HORIZONTAL
Mounting Type:	Resilient Rings
NEMA Design:	NO DESIGN CODE
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	A-SS403800-375
Phases:	1
Power Factor:	77.5
Power Rating (HP):	0.25
Power Rating (kW):	0.19
Rotation:	Selective Counterclockwise
Service Factor:	1
Shaft Diameter (IN):	0.500
Shaft Extension:	4.06
Shaft Type:	Single Special Extension
Speed:	1075
Speed Max:	1075
Starting Type:	Across The Line
Type of Overload Protector:	Automatic Lock Rotor Only
UL:	Recognized
Voltage:	230
