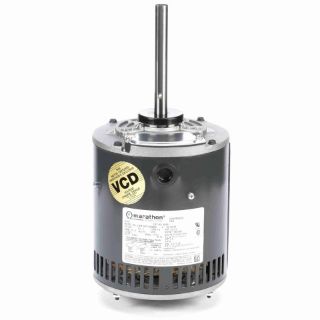

X506 MAR

Name: X506 MAR
Brand: Marathon Electric Motors
SKU: X506 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

X506

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056T8O5301

Features

70°C ambient Enclosed shaft end bracket, vented frame Automatic reset thermal protector Nameplate 60/50 hertz 190/380 volts, at next lower HP Double sealed ball bearings 5/8” Dia. x 5” long shaft with flat and keyway Threaded lead exit Patented VCD™ - Voltage Change Deviceh Locating screws 90 degrees apart, 3.33” from outer edge of shaft slinger Hubs on both ends will accept resilient base kits, see Accessories section

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	16.06
CE:	N
Connection Drawing Number:	A-102007-1
Country of Origin:	United States of America
CSA:	Y
Current:	3.6-3.6/1.8
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	75.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Open Air Over
Frame Length (IN):	8.56
Frame Material:	Rolled Steel
Frame Size:	56
Frame Suffix:	Y
Frame Type:	56Y
Frequency:	60
Harmonized Tariff Code:	8501.51.4040
HP:	0.75
Insulation Class:	H
IP Code:	10
KVA Code:	J
Max Ambient:	70°C
Motor Orientation:	Horizontal
Mounting Type:	Round Belly Band
NEMA Design:	B
Number of Poles:	8
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-100327-856
Phases:	3
Power Factor:	62
Power Rating (HP):	0.75
Power Rating (kW):	0.56
Resistance Main:	23.5
Rotation:	Reversible
Service Factor:	1
Shaft Diameter (IN):	0.625
Shaft Extension:	5.06
Shaft Type:	Single Special Extension
Speed:	850
Speed Max:	850
Starting Type:	Across The Line
Type of Overload Protector:	Automatic Lock Rotor Only
UL:	Recognized
Voltage:	208-230/460
