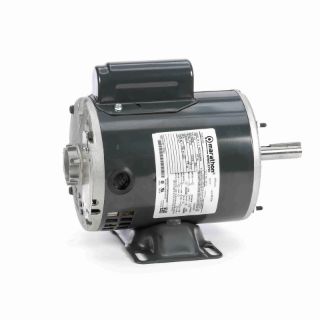

X902 MAR

Name: X902 MAR
Brand: Marathon Electric Motors
SKU: X902 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

X902

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056B17F5324

Features

Extended thru-bolts Fully gasketed 48/56 Frame mounting holes Continuous duty Automatic reset thermal protector 1/2” dia. x 2-1/2” long shaft with two flats, 90º apart Capacitor start/capacitor run design for reduced amperage 56H, 143T, and 145T combination base with 12 mounting holes

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	13.21
CE:	N
Connection Drawing Number:	102006-52
Country of Origin:	United States of America
CSA:	Y
Current:	15.2/8.2-7.6
DE Bearing Size:	6205
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	80
Electrical Type:	Capacitor Start Capacitor Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	8.56
Frame Material:	Rolled Steel
Frame Size:	56
Frame Suffix:	HZ
Frame Type:	56HZ
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	1.50
Insulation Class:	B
IP Code:	43
KVA Code:	J
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	NO DESIGN CODE
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-100647-856
Phases:	1
Power Factor:	80
Power Rating (HP):	1.50
Power Rating (kW):	1.1
Resistance Main:	0
Rotation:	Selective Counterclockwise
Service Factor:	1.15
Shaft Diameter (IN):	0.875
Shaft Extension:	1.25
Shaft Type:	Single Special Extension
Speed:	1725
Speed Max:	1725
Starting Type:	Across The Line
Type of Overload Protector:	Manual
UL:	Recognized ( Not Protector)
Voltage:	115/208-230
