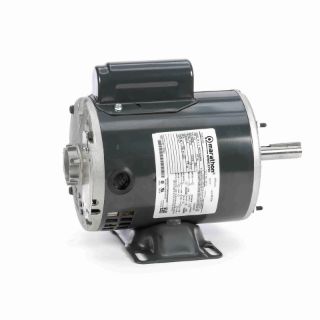

X904 MAR

Name: X904 MAR
Brand: Marathon Electric Motors
SKU: X904 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

X904

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

048S17T2000

Features

Ball bearings Extended thru-bolts on X903, X904, P250, and P251 48Z Frame has 1/2” dia. x 2-1/2” long shaft with two flats 56Z Frame has 1/2” dia. x 1-7/8” long with 1-5/8” flat 48Y & 48YZ have 48/56 Fr. Mounting holes 1.0 Service Factor (except as noted) Thermal protection, as noted Fully Gasketed

Specifications

Assembly/Box Mounting:	F1 Only
CE:	N
Connection Drawing Number:	A-EE7195
Country of Origin:	United States of America
CSA:	Y
Current:	4.2
DE Bearing Size:	6203
DE Bearing Type:	BALL
Duty:	CONTINUOUS
Efficiency:	72.3
Electrical Type:	SPLIT PHASE
Enclosure Type:	TEAO
Frame Material:	ROLLED STEEL
Frame Size:	48
Frame Suffix:	Z
Frame Type:	48Z
Frequency:	60
HP:	0.33
Insulation Class:	B
IP Code:	43
KVA Code:	M
Max Ambient:	40°C
Motor Orientation:	HORIZONTAL
Mounting Type:	RESILIENT BASE-EXTENDED STUDS
NEMA Design:	No Design Code
Number of Poles:	4
Number of Speeds:	0
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	A-SS400070-675
Phases:	1
Power Rating (HP):	0.33
Power Rating (kW):	0.25
Resistance Main:	0
Rotation:	SELECTIVE CCW
Service Factor:	1
Shaft Type:	SGL SPL EXT
Speed:	1725
Speed Max:	1725
Starting Type:	ACROSS THE LINE
Type of Overload Protector:	AUT LCK RTR ONLY
UL:	Recognized
Voltage:	115
