XPA2120 GAT

Name: XPA2120 GAT
Brand: Gates Corporation
SKU: XPA2120 GAT
Price: 48.19 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates Corporation

Manufacturer part number:

XPA2120

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$48.19 / EA

Description

Brand Name

Gates®

Type

Heavy Duty Molded Notch

Description

Manufactured in the Americas, these belts are made to Gates® high quality global production standards. Metric-Power™ belts are readily available for replacement on drives that require metric cross-sections.

Gates® Metric-Power™ V-Belt, Heavy Duty Molded Notch, Series: 9420, XPA Section, 13 mm Top Width, 2136 mm Outside Length, 10 mm Thickness, 1 Rib, -70 to 250 deg F, EPDM, Flex-Bonded Polyester Reinforced

Application

Textile Mills, Machine Tool and Food Processing Applications

Standards

ARPM/RMA IP-3-2/IP-3-3

Features

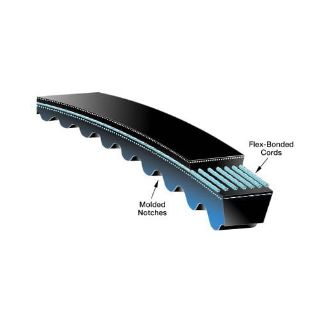

Flex-bonded cords are chemically bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
Proprietary construction features an unbeatable combination of flex and load carrying capacity, reduced stretch and incredible cord adhesion properties
Patented ethylene material construction provides -70 to 250 deg F temperature range to resist belt cracking
Molded notches reduce thermal and bending stresses

Specifications

Country of Origin:	US
Material:	EPDM
Number of Ribs:	1
Outside Length:	2136 mm
Reinforced Material:	Flex-Bonded Polyester
Section Size:	XPA
Series:	9420
Temperature Range:	-70 to 250 deg F
Thickness:	10 mm
Top Width:	13 mm
