XPB2120 GAT

Name: XPB2120 GAT
Brand: Gates
SKU: XPB2120 GAT
Price: 62.64 USD
Availability: OutOfStock

Metric Power

Manufacturer: Gates

Manufacturer part number: XPB2120

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$62.64

Qty:

Product Details

Brand Name

Gates

Alternate Supplier #

942112120

Description

Manufactured to our exacting standards for quality, safety, and dependability. Their proprietary construction ensures unmatched load-carrying capacity paired with superior flex and stretch resistance.

Features

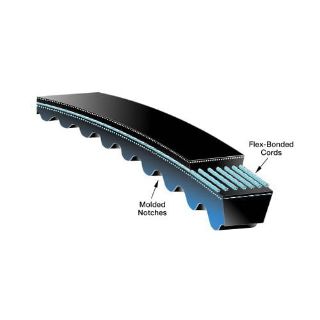

Flex-bonded cords are chemically forged to the belt body, providing equal load distribution and bending stress absorption without cord deterioration. Patented Ethylene construction helps resists belt cracking and provides application versatility. Proprietary construction process combines flex and load-carrying capacity with reduced stretch and superior cord adhesion properties. Ideal for use as replacements on drives that require metric cross sections in a broad range of applications, including textile mills, machine tool and food processing. Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant.

Specifications

Angle:	40
Belt Back Side:	Smooth
Belt Inside:	Notched
Belt/Slab:	Belt
Color:	Black
Construcao:	Bandless
Cord Material:	Polyester
Country of Origin:	US
Effective Length (in):	84.13
Effective Length (mm):	2137
GC Base Product:	Metric Power™ V-Belts - XPB Section
Harmonized Tariff Code:	4010.34.3000
Material:	Ethylene Elastomeric
Max Temp (°C):	+121
Max Temp (F):	+250
Min Temp (°C):	-57
Min Temp (F):	-70
Number of Ribs/Strands:	1
OC (in):	84.53
OC (mm):	2147
Proposition 65:	NO
Secao:	XPB
Sided:	Single Sided
Static Conductive:	Yes
Thickness (in):	0.53
Thickness (mm):	13
Top Width (in):	0.62
Top Width (mm):	16
Unitset (V80):	Yes
