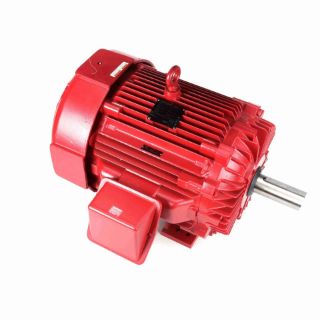

Y1630 MAR

Name: Y1630 MAR
Brand: Marathon Electric Motors
SKU: Y1630 MAR
Price: 11,480.00 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y1630

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

$11,480.00 / EA

Description

Alternate Supplier #

405TTFS14328

Features

Red paint exterior NEMA Design B, Code G or less Dual voltage motors have 12 leads, suitable for wye-delta or across the line start on either voltage, or part winding start on low voltage Single voltage motors have 12 leads and are suitable for wye-delta, across the line, or part winding start Will accept C- Face kits, see Accessories section 230/460 and 460 Volt models rated for 50 HZ at next lower HP For special designs, contact district sales office near you

Specifications

Assembly/Box Mounting:	F1/F2 CAPABLE
C Dim (IN):	37.13
CE:	Y
Connection Drawing Number:	A-EE7308AA
Country of Origin:	United States of America
CSA:	Y
Current:	224.0/112.0
DE Bearing Size:	6316
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	94.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	16.75
Frame Material:	Cast Iron
Frame Size:	405
Frame Suffix:	T
Frame Type:	405T
Frequency:	60
Harmonized Tariff Code:	8501.53.4080
HP:	100
Insulation Class:	F
IP Code:	43
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6313
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS504700-1675
Phases:	3
Power Factor:	88
Power Rating (HP):	100
Power Rating (kW):	75.0
Resistance Main:	.058
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	2.875
Shaft Extension:	7.49
Shaft Type:	T
Speed:	1780
Speed Max:	1780
Starting Type:	Part Wdg Start Low Volt Only & Wye Start Delta Run
Type of Overload Protector:	No
UL:	No
Voltage:	230/460
