Y1641 MAR

Name: Y1641 MAR
Brand: Marathon Electric Motors
SKU: Y1641 MAR
Price: 27,824.18 USD
Availability: OutOfStock

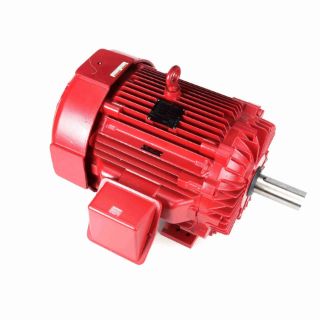

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y1641

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

$27,824.18 / EA

Description

Alternate Supplier #

449TSTFS14040

Features

Red paint exterior NEMA Design B, Code G or less Dual voltage motors have 12 leads, suitable for wye-delta or across the line start on either voltage, or part winding start on low voltage Single voltage motors have 12 leads and are suitable for wye-delta, across the line, or part winding start Will accept C- Face kits, see Accessories section For special designs, contact district sales office near you

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	48.11
CE:	Y
Connection Drawing Number:	A-EE7300BH
Country of Origin:	United States of America
CSA:	Y
Current:	285.0
DE Bearing Size:	6318
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	95.4
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	28.75
Frame Material:	Cast Iron
Frame Size:	449
Frame Suffix:	TS
Frame Type:	447/449TS
Frequency:	60
Harmonized Tariff Code:	8501.53.8040
HP:	250
Insulation Class:	F
IP Code:	43
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6316
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS515643-2875
Phases:	3
Power Factor:	86
Power Rating (HP):	250
Power Rating (kW):	187.0
Resistance Main:	.0107
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	2.375
Shaft Extension:	5
Shaft Type:	TS
Speed:	1785
Speed Max:	1785
Starting Type:	Part Wdg Start & Wye Start Delta Run
Type of Overload Protector:	No
UL:	No
Voltage:	460
