Y203 MAR

Name: Y203 MAR
Brand: Marathon Electric Motors
SKU: Y203 MAR
Availability: OutOfStock

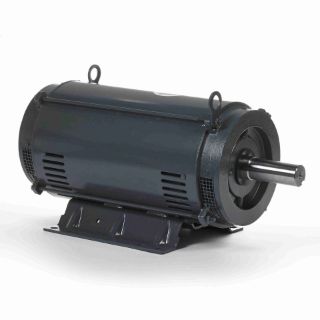

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y203

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

254TTDX7377

Features

NEMA design D for extra high starting and breakdown torques Normally closed thermostats (one per phase, Class F) Fully guarded with screens on all external openings Copper bar rotor on 500 frame Low starting current with 5-8% slip Class F insulation, F2 conduit box location Ball bearings Shaft slinger Special “oil well” duty 1.15 Service Factor

Specifications

Assembly/Box Mounting:	F2 Only
C Dim (IN):	21.29
CE:	N
Connection Drawing Number:	A-EE7326C
Country of Origin:	United States of America
CSA:	N
Current:	22.0/11.0/6.4
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Oil Well
Efficiency:	85.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	13.4
Frame Material:	Rolled Steel
Frame Size:	254
Frame Suffix:	T
Frame Type:	254T
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	7.50
Insulation Class:	F
IP Code:	23
KVA Code:	J
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	D
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6208
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS88053-1340
Phases:	3
Power Factor:	74
Power Rating (HP):	7.50
Power Rating (kW):	5.6
Resistance Main:	1.25
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.625
Shaft Extension:	4
Shaft Type:	T
Speed:	1140
Speed Max:	1140
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460/796

Resources

Spec Sheet
