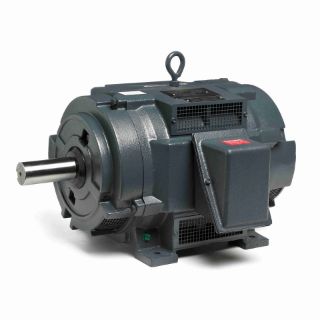

Y209 MAR

Name: Y209 MAR
Brand: Marathon Electric Motors
SKU: Y209 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y209

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

365TTDS7383

Features

NEMA design D for extra high starting and breakdown torques Normally closed thermostats (one per phase, Class F) Fully guarded with screens on all external openings Copper bar rotor on 500 frame Low starting current with 5-8% slip Class F insulation, F2 conduit box location Shaft slinger Special “oil well” duty Ball bearings

Specifications

Assembly/Box Mounting:	F2/F1 Capable
C Dim (IN):	29.93
CE:	N
Connection Drawing Number:	A-EE7304H
Country of Origin:	United States of America
CSA:	N
Current:	48.0/27.7
DE Bearing Size:	6314
DE Bearing Type:	Ball
Duty:	Oil Well
Efficiency:	87.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	15.
Frame Material:	Cast Iron
Frame Size:	365
Frame Suffix:	T
Frame Type:	365T
Frequency:	60
Harmonized Tariff Code:	8501.52.8040
HP:	40
Insulation Class:	F
IP Code:	22
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	D
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6314
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS513938-1500
Phases:	3
Power Factor:	88
Power Rating (HP):	40
Power Rating (kW):	30.0
Resistance Main:	.22
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	2.375
Shaft Extension:	5.88
Shaft Type:	T
Speed:	1120
Speed Max:	1120
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	No
Voltage:	460/796
