Y213 MAR

Name: Y213 MAR
Brand: Marathon Electric Motors
SKU: Y213 MAR
Availability: OutOfStock

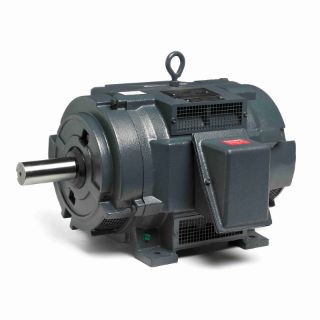

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y213

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

445TTDS9477

Features

NEMA design D for extra high starting and breakdown torques Normally closed thermostats (one per phase, Class F) Fully guarded with screens on all external openings Copper bar rotor on 500 frame Low starting current with 5-8% slip Class F insulation, F2 conduit box location Ball bearings Shaft slinger Special “oil well” duty 1.15 Service Factor

Specifications

Assembly/Box Mounting:	F2/F1 Capable
C Dim (IN):	40.06
CE:	N
Connection Drawing Number:	A-EE7304H
Country of Origin:	United States of America
CSA:	N
Current:	124.0/71.5
DE Bearing Size:	6318
DE Bearing Type:	Ball
Duty:	Oil Well
Efficiency:	88.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	2.5
Frame Material:	Cast Iron
Frame Size:	445
Frame Suffix:	T
Frame Type:	445T
Frequency:	60
Harmonized Tariff Code:	8501.53.4080
HP:	100
Insulation Class:	F
IP Code:	22
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	D
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6316
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS513939-2050
Phases:	3
Power Factor:	87
Power Rating (HP):	100
Power Rating (kW):	75.0
Resistance Main:	.082
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	3.375
Shaft Extension:	8.5
Shaft Type:	T
Speed:	1120
Speed Max:	1120
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	No
Voltage:	460/796

Resources

Spec Sheet
