Y215 MAR

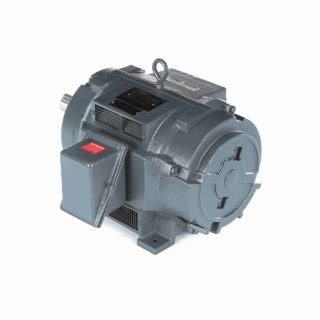

Picture of Y215 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
Y215
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

284TTDP7692

Features

NEMA design D for extra high starting and breakdown torques Normally closed thermostats (one per phase, Class F) Fully guarded with screens on all external openings Copper bar rotor on 500 frame Low starting current with 5-8% slip Class F insulation, F2 conduit box location Shaft slinger Special “oil well” duty Ball bearings

Specifications

Assembly/Box Mounting:F2 Only
C Dim (IN):23.44
CE:N
Connection Drawing Number:A-EE7326C
Country of Origin:United States of America
CSA:N
Current:41.0/20.5/11.9
DE Bearing Size:6311
DE Bearing Type:Ball
Duty:Oil Well
Efficiency:87.5
Electrical Type:Squirrel Cage Induction Run
Enclosure Type:Drip Proof
Frame Length (IN):12.75
Frame Material:Cast Iron
Frame Size:284
Frame Suffix:T
Frame Type:284T
Frequency:60
Harmonized Tariff Code:8501.52.4000
HP:15
Insulation Class:F
IP Code:23
KVA Code:J
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:D
Number of Poles:6
Number of Speeds:1
ODE Bearing Size:6210
ODE Bearing Type:Ball
Outline Drawing Number:B-SS200374-1275
Phases:3
Power Factor:78
Power Rating (HP):15
Power Rating (kW):11.2
Resistance Main:.741
Rotation:Reversible
Service Factor:1.15
Shaft Diameter (IN):1.875
Shaft Extension:4.81
Shaft Type:T
Speed:1140
Speed Max:1140
Starting Type:Across The Line
Type of Overload Protector:No
UL:No
Voltage:230/460/796

Resources

Engineering DrawingSpec Sheet
