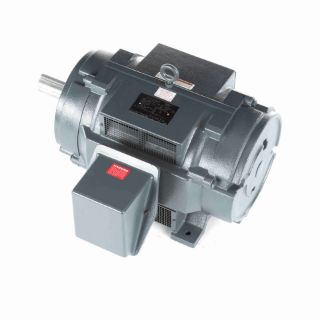

Y218 MAR

Name: Y218 MAR
Brand: Marathon Electric Motors
SKU: Y218 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y218

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

326TTDP7697

Features

NEMA design D for extra high starting and breakdown torques Normally closed thermostats (one per phase, Class F) Fully guarded with screens on all external openings Copper bar rotor on 500 frame Low starting current with 5-8% slip Class F insulation, F2 conduit box location Shaft slinger Special “oil well” duty Will become build-up item when current stock is gone

Specifications

Assembly/Box Mounting:	F2/F1 Capable
C Dim (IN):	27.50
CE:	N
Connection Drawing Number:	A-EE7304H
Country of Origin:	United States of America
CSA:	N
Current:	40.0/23.1
DE Bearing Size:	6312
DE Bearing Type:	Ball
Duty:	Oil Well
Efficiency:	88.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	15.12
Frame Material:	Cast Iron
Frame Size:	326
Frame Suffix:	T
Frame Type:	326T
Frequency:	60
Harmonized Tariff Code:	8501.52.8040
HP:	30
Insulation Class:	F
IP Code:	23
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	D
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6311
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS200218-1512
Phases:	3
Power Factor:	79.5
Power Rating (HP):	30
Power Rating (kW):	22.4
Resistance Main:	.265
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	2.125
Shaft Extension:	5.52
Shaft Type:	T
Speed:	1130
Speed Max:	1130
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	460/796
