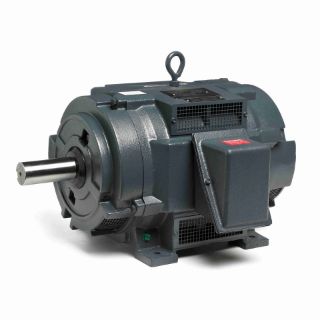

Y219 MAR

Name: Y219 MAR
Brand: Marathon Electric Motors
SKU: Y219 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y219

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

505UTDS1584

Features

NEMA design D for extra high starting and breakdown torques Normally closed thermostats (one per phase, Class F) Fully guarded with screens on all external openings Copper bar rotor on 500 frame Low starting current with 5-8% slip Class F insulation, F2 conduit box location Roller bearing on shaft end for belted load only Shaft slinger Special “oil well” duty 1.15 Service Factor

Specifications

Assembly/Box Mounting:	F2/F1 Capable
C Dim (IN):	45.19
CE:	N
Connection Drawing Number:	A-EE7304H
Country of Origin:	United States of America
CSA:	N
Current:	153.0/88.5
DE Bearing Size:	NU319
DE Bearing Type:	Roller
Duty:	Oil Well
Efficiency:	89.5
Electrical Type:	Bar Rotator Induction Run
Enclosure Type:	Drip Proof
Frame Material:	Cast Iron
Frame Size:	505
Frame Suffix:	TZ
Frame Type:	505TZ
Frequency:	60
Harmonized Tariff Code:	8501.53.4080
HP:	125
Insulation Class:	F
IP Code:	22
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	D
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6319
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS550848-2100
Phases:	3
Power Factor:	86.5
Power Rating (HP):	125
Power Rating (kW):	93.0
Resistance Main:	.033
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	3.375
Shaft Extension:	10.12
Shaft Type:	Single Special Extension
Speed:	1125
Speed Max:	1125
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	No
Voltage:	460/796
