Y270A MAR

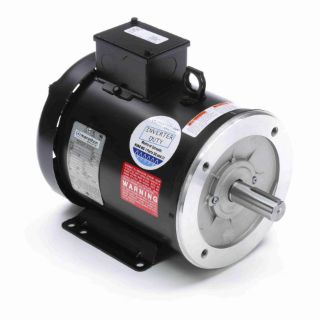

Picture of Y270A MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
Y270A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

182THFW7730

Features

Designed to replace PMDC motors (when used with a VFD) Constant horsepower to twice base speed (RPM) Class H insulation with CR200 magnet wire Top mounted conduit box as found on PMDC motors Eliminates brush and commutator maintenance Bolt-on, removable rigid base, for footless mounting option F1 mounting only, cannot reassemble to F2

Specifications

Assembly/Box Mounting:F3
C Dim (IN):14.97
CE:Y
Connection Drawing Number:005102.01ME
Country of Origin:Mexico
CSA:Y
Current:3.1
DE Bearing Size:6206
DE Bearing Type:Ball
Duty:Continuous
Efficiency:89.5
Electrical Type:Squirrel Cage Inverter Duty
Enclosure Type:Totally Enclosed Fan Cooled
Frame Length (IN):9.5
Frame Material:Rolled Steel
Frame Size:182
Frame Suffix:TC
Frame Type:182TC
Frequency:60
HP:3
Insulation Class:H
IP Code:43
KVA Code:K
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Bolt-on Base
NEMA Design:INV
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6205
ODE Bearing Type:Ball
Outline Drawing Number:035651-950
Phases:3
Power Factor:80.5
Power Rating (HP):3
Power Rating (kW):2.2
Resistance Main:6.08
Rotation:Reversible
Service Factor:1
Shaft Diameter (IN):1.125
Shaft Extension:2.88
Shaft Type:T
Speed:1768
Speed Max:1768
Starting Type:Inverter Only
Type of Overload Protector:No
UL:Recognized
Voltage:575

Resources

Spec Sheet

Products Specifications

Horsepower
3 HP
