Y28L RBC

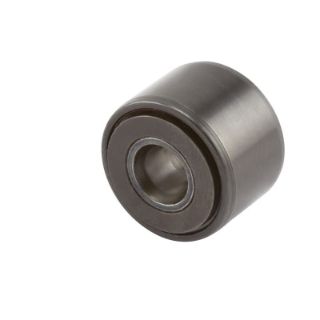

RBC® Y28L Universal Series™ Yoke Cylindrical Roller Cam Follower, 1/4 in Dia Bore, 7/8 in Dia x 1/2 in W Roller, 4150 lb Load, Chrome Steel Roller
Manufacturer part number: Y28L
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
2 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$36.82

Product Details

Brand Name

RBC®

Type

Yoke

Description

RBC® Cylindrical Roller Cam Follower, Yoke, Series: Universal Series™, 1/4 in Bore, 7/8 in Roller Diameter, 1/2 in Roller Width, 9/16 in Overall Width, 4150 lb Load, Double Seal Closure, 3930 rpm Maximum, 0 to 250 deg F, Chrome Steel Roller, Black Oxide

Application

Material Handling, Turntable Mounting, Lift Trucks and Textile Machinery

Standards

ANSI/ABMA Standard 11 | ASPR | CAS | DFAR | FAR Standards

Features

  • Yoke type design allows for clevis mounting which provides support on both sides of the cam follower and permits use of a high strength pin
  • Designed for moderate loads
  • Double sealed to keep grease in and contaminants out
  • 1800 lb dynamic/4150 lb static
  • Flat outside ring
  • Without stud

Specifications

Bore Diameter:1/4 in
Closure Type:Double Seal
Country of Origin:US
Finish:Black Oxide
Load Capacity:4150 lb
Maximum Speed:3930 rpm
Overall Width:9/16 in
Roller Diameter:7/8 in
Roller Material:Chrome Steel
Roller Width:1/2 in
Series:Universal Series™
Temperature Rating:0 to 250 deg F
