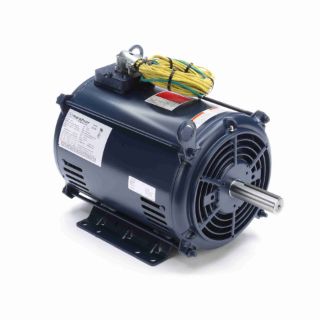

Y303 MAR

Name: Y303 MAR
Brand: Marathon Electric Motors
SKU: Y303 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y303

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

184TTDR7612

Features

Double sealed ball bearings Continuous duty Class F insulation system Thermostats for thermal overload protection (auto reset protector on Z304) 34” long leads for ease of installation Keyed shafts with 1/4”-20 UNC tapped hole in end Capacitors included, shipped loose on catalog Z307 and Z308, mounted on all other models Extra nameplate included, loose, for remote mounting

Specifications

Assembly/Box Mounting:	F3
C Dim (IN):	14.22
CE:	N
Connection Drawing Number:	A-EE7308T
Country of Origin:	United States of America
CSA:	Y
Current:	20.0-27.0/13.5
DE Bearing Size:	6206
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	85
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	6.75
Frame Material:	Rolled Steel
Frame Size:	184
Frame Suffix:	TZ
Frame Type:	184TZ
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	7
Insulation Class:	F
IP Code:	22
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS67005-675
Phases:	3
Power Factor:	83.5
Power Rating (HP):	7
Power Rating (kW):	5.2
Resistance Main:	1.85
Rotation:	Reversible
Service Factor:	1.4
Shaft Diameter (IN):	1.13
Shaft Extension:	3.25
Shaft Type:	Single Special Extension
Speed:	3510
Speed Max:	3510
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	208-220/440
