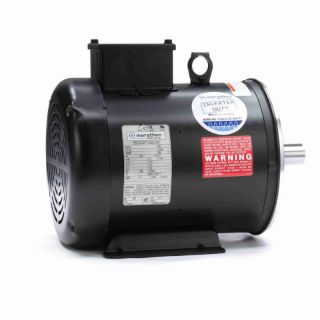

Y371 MAR

Name: Y371 MAR
Brand: Marathon Electric Motors
SKU: Y371 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y371

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

182THFR5330

Features

Designed to replace PMDC motors (when used with a VFD) Constant horsepower to twice base speed (RPM) Class H insulation with CR200 magnet wire 182T base and shaft height, 145TC mounting face and shaft dim Continuous duty at 40°C ambient Suitable for 2:1 CT operation Top mounted conduit box as found on PMDC motors Eliminates brush and commutator maintenance

Specifications

Assembly/Box Mounting:	F3
C Dim (IN):	14.87
CE:	Y
Connection Drawing Number:	A-EE7300
Country of Origin:	United States of America
CSA:	Y
Current:	3.4
DE Bearing Size:	6205
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	85.5
Electrical Type:	Squirrel Cage Inverter Duty
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	9.56
Frame Material:	Rolled Steel
Frame Size:	182
Frame Suffix:	TCZ
Frame Type:	182TCZ
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	3
Insulation Class:	H
IP Code:	43
KVA Code:	L
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	INV
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-104964-956
Phases:	3
Power Factor:	79
Power Rating (HP):	3
Power Rating (kW):	2.2
Resistance Main:	5.32
Rotation:	Reversible
Service Factor:	1
Shaft Diameter (IN):	0.875
Shaft Extension:	2.12
Shaft Type:	NEMA 145T
Speed:	1735
Speed Max:	1735
Starting Type:	Inverter Only
Type of Overload Protector:	No
UL:	Recognized
Voltage:	575
