Y375 MAR

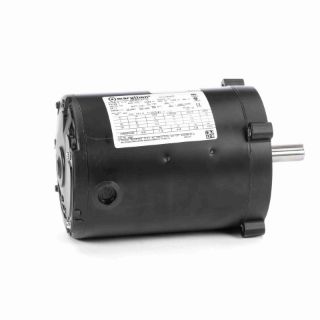

Picture of Y375 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
Y375
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

056H17T2020

Features

Designed to replace PMDC motors (when used with a VFD) Constant horsepower to twice base speed (RPM) Class H insulation with CR200 magnet wire Top mounted conduit box as found on PMDC motors Eliminates brush and commutator maintenance Totally enclosed, non-ventilated "Quick connect" terminal board

Specifications

Assembly/Box Mounting:F1 ONLY
C Dim (IN):9.91
CE:Y
Connection Drawing Number:A-EE7300HX
Country of Origin:Mexico
CSA:Y
Current:0.70
DE Bearing Size:6203
DE Bearing Type:Ball
Duty:Continuous
Efficiency:74
Electrical Type:Squirrel Cage Inverter Duty
Enclosure Type:Totally Enclosed Non Ventilated
Frame Length (IN):6.25
Frame Material:Rolled Steel
Frame Size:56
Frame Suffix:C
Frame Type:56C
Frequency:60
Harmonized Tariff Code:8501.51.4040
HP:0.50
Insulation Class:H
IP Code:43
KVA Code:N
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Round
NEMA Design:INV
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6203
ODE Bearing Type:Ball
Outline Drawing Number:A-SS400214-625
Phases:3
Power Factor:69
Power Rating (HP):0.50
Power Rating (kW):0.37
Resistance Main:29.2
Rotation:Reversible
Service Factor:1
Shaft Diameter (IN):0.625
Shaft Extension:2.06
Shaft Type:NEMA 56
Speed:1725
Speed Max:1725
Starting Type:Inverter Only
Type of Overload Protector:No
UL:Recognized
Voltage:575

Resources

Engineering DrawingSpec Sheet
