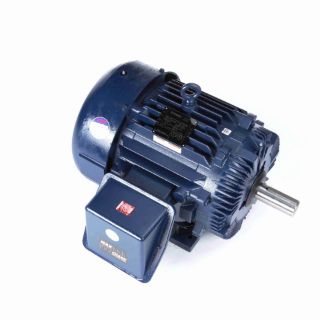

Y392 MAR

Name: Y392 MAR
Brand: Marathon Electric Motors
SKU: Y392 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y392

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

444TTFS7262

Features

Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration Internal and external epoxy paint Class F insulation Extended grease tubes, regreasable in service T-drains provided for effective drainage Shaft Slinger, Forsheda seals on both ends Actual test and vibration data supplied with each motor

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	41.27
CE:	Y
Connection Drawing Number:	A-EE7322
Country of Origin:	United States of America
CSA:	Y
Current:	113.0
DE Bearing Size:	6318
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	94.1
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	18.5
Frame Material:	Cast Iron
Frame Size:	444
Frame Suffix:	T
Frame Type:	444T
Frequency:	60
Harmonized Tariff Code:	8501.53.4080
HP:	100,25
Insulation Class:	F
IP Code:	55
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	1VT
Number of Poles:	4/8
Number of Speeds:	2
ODE Bearing Size:	6316
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS508879-1850
Phases:	3
Power Factor:	88
Power Rating (HP):	100
Power Rating (kW):	75.0
Resistance Main:	.051
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	3.375
Shaft Extension:	8.75
Shaft Type:	T
Speed:	1785,890
Speed Max:	1785
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	460
