Y418 MAR

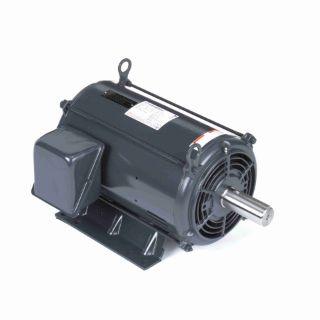

Picture of Y418 MAR

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y418

CBT Inventory

0

Vendor Inventory

Loading...

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Log in for more accurate pricing

$1,881.29 / EA

Description

Alternate Supplier #

254TTDX7208

Features

Economical two-winding design

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	20.57
CE:	Y
Connection Drawing Number:	A-EE7317
Country of Origin:	United States of America
CSA:	Y
Current:	10.0
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	84
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Material:	Rolled Steel
Frame Size:	254
Frame Suffix:	T
Frame Type:	254T
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	7.50,3.33
Insulation Class:	B
IP Code:	12
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	2VT
Number of Poles:	4/6
Number of Speeds:	2
ODE Bearing Size:	6208
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS86503-1370
Phases:	3
Power Factor:	82.9
Power Rating (HP):	7.50
Power Rating (kW):	5.6
Resistance Main:	.228
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.625
Shaft Extension:	4.19
Shaft Type:	T
Speed:	1755,1175
Speed Max:	1755
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	460

Resources

Engineering Drawing Spec Sheet
