Y44L RBC

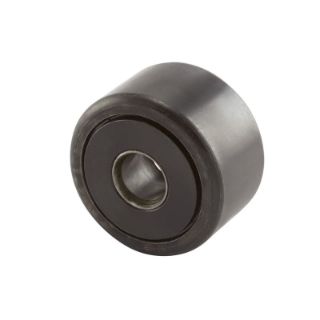

RBC® Y44L Universal Series™ Yoke Cylindrical Roller Cam Follower, 3/8 in Dia Bore, 1-3/8 in Dia x 3/4 in W Roller, 8500 lb Load, Chrome Steel Roller
Manufacturer part number: Y44L
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
4 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$51.00

Product Details

Brand Name

RBC®

Type

Yoke

Description

RBC® Cylindrical Roller Cam Follower, Yoke, Series: Universal Series™, 3/8 in Bore, 1-3/8 in Roller Diameter, 3/4 in Roller Width, 13/16 in Overall Width, 8500 lb Load, Double Seal Closure, 2620 rpm Maximum, 0 to 250 deg F, Chrome Steel Roller, Black Oxide

Application

Material Handling, Turntable Mounting, Lift Trucks and Textile Machinery

Standards

ANSI/ABMA Standard 11 | ASPR | CAS | DFAR | FAR Standards

Features

  • Yoke type design allows for clevis mounting which provides support on both sides of the cam follower and permits use of a high strength pin
  • Designed for moderate loads
  • Double sealed to keep grease in and contaminants out
  • 4200 lb dynamic/8500 lb static
  • Flat outside ring
  • Without stud

Specifications

Bore Diameter:3/8 in
Closure Type:Double Seal
Country of Origin:US
Finish:Black Oxide
Load Capacity:8500 lb
Maximum Speed:2620 rpm
Overall Width:13/16 in
Roller Diameter:1-3/8 in
Roller Material:Chrome Steel
Roller Width:3/4 in
Series:Universal Series™
Temperature Rating:0 to 250 deg F
