Y486 MAR

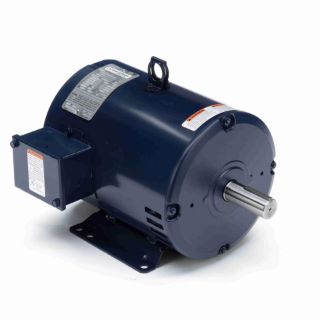

Picture of Y486 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
184TTDR7287
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

4/8-Pole Continuous Duty

Description

Marathon® AC Motor, 4/8-Pole Continuous Duty, Application Type: Fan & Blower Motors, 5/1.25 hp, 200 to 230 VAC, 15.1 to 14.2/6 to 6.23 A, 60 Hz, 3 ph, 3505 rpm, Drip-Proof, 184T Frame, 1.13 in Dia x 2.78 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 19 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 14.72 in L x 11.33 in W x 10.41 in H

Application

Commercial and Industrial Pumps and Other Machinery

Standards

CE | CSA Certified | UL Listed

Features

  • Economical two-winding design
  • Two speed two winding variable torque motors
  • Squirrel cage induction run

Specifications

Amperage Rating:15.1 to 14.2/6 to 6.23 A
Application Type:Fan & Blower Motors
Bearing Type:Ball
Country of Origin:US
Dimensions:14.72 in L x 11.33 in W x 10.41 in H
Enclosure Type:Drip-Proof
Frame:184T
Frequency Rating:60 Hz
Horsepower:5/1.25 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:Rigid Base
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:1.13 in Dia x 2.78 in L
Speed:3505 rpm
Temperature Rating:40 deg C
Torque Rating:19 ft-lb
Voltage Rating:200 to 230 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Horsepower
5 HP
Speed Rating
1755
Type
Squirrel Cage Induction Run
Voltage Rating
200 V
