Y490 MAR

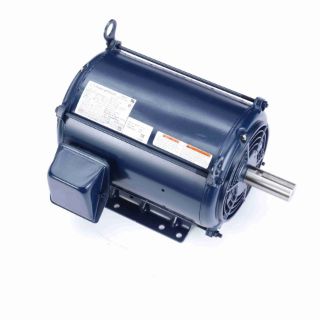

Picture of Y490 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
Y490
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

215TTDW17206

Features

Ball Bearings 1.15 Service Factor UL Recognized and CSA Certified F1 mounting only, cannot reassemble to F2

Specifications

Assembly/Box Mounting:F1 Only
C Dim (IN):18.55
CE:Y
Connection Drawing Number:A-EE7322
Country of Origin:United States of America
CSA:Y
Current:29.0-26.4
DE Bearing Size:6307
DE Bearing Type:Ball
Duty:Continuous
Efficiency:86.5
Electrical Type:Squirrel Cage Induction Run
Enclosure Type:Drip Proof
Frame Length (IN):12.4
Frame Material:Rolled Steel
Frame Size:215
Frame Suffix:T
Frame Type:215T
Frequency:60
Harmonized Tariff Code:8501.52.4000
HP:10,2.50
Insulation Class:F
IP Code:22
KVA Code:L
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:1VT
Number of Poles:4/8
Number of Speeds:2
ODE Bearing Size:6206
ODE Bearing Type:Ball
Outline Drawing Number:A-SS86500-1240
Phases:3
Power Factor:82
Power Rating (HP):10
Power Rating (kW):7.5
Resistance Main:1.15
Rotation:Reversible
Service Factor:1.15
Shaft Diameter (IN):1.375
Shaft Extension:3.47
Shaft Type:T
Speed:1755,875
Speed Max:1755
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:200-230

Resources

Engineering DrawingSpec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Horsepower
2 1/2 HP
Speed Rating
1755
Type
Squirrel Cage Induction Run
Voltage Rating
200 V
