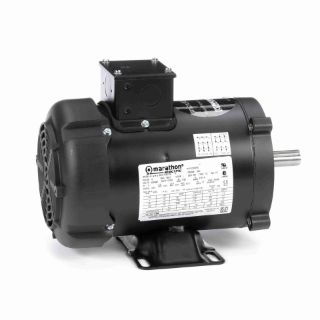

Y523 MAR

Name: Y523 MAR
Brand: Marathon Electric Motors
SKU: Y523 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y523

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

145THFR5326

Features

Designed to replace PMDC motors (when used with a VFD) Constant horsepower to twice base speed (RPM) Class H insulation with CR200 magnet wire Bolt-on removable base for footless mounting option Continuous duty at 40°C ambient Eliminates brush and commutator maintenance Top mounted conduit box as found on PMDC motors

Specifications

Assembly/Box Mounting:	F3
C Dim (IN):	14.95
CE:	Y
Connection Drawing Number:	A-EE7300
Country of Origin:	United States of America
CSA:	Y
Current:	5.8
DE Bearing Size:	6205
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	82.5
Electrical Type:	Squirrel Cage Inverter Duty
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	9.56
Frame Material:	Rolled Steel
Frame Size:	145
Frame Suffix:	TC
Frame Type:	145TC
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	2
Insulation Class:	H
IP Code:	43
KVA Code:	L
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Bolt-on Base
NEMA Design:	INV
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-104962-956
Phases:	3
Power Factor:	77
Power Rating (HP):	2
Power Rating (kW):	1.5
Resistance Main:	6.65
Rotation:	Reversible
Service Factor:	1
Shaft Diameter (IN):	0.875
Shaft Extension:	2.12
Shaft Type:	T
Speed:	1740
Speed Max:	1740
Starting Type:	Inverter Only
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230
