Y527 MAR

Name: Y527 MAR
Brand: Marathon Electric Motors
SKU: Y527 MAR
Availability: OutOfStock

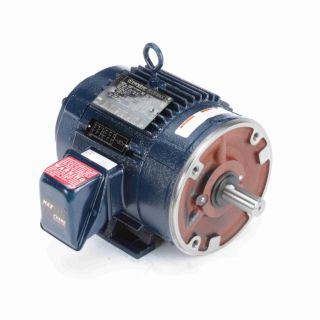

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y527

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

182THTS8028

Features

MAX GUARD® Class H insulation system Constant torque operation from 0 to base speed on vector drive, including TEFC (On Volts/Hertz drives, TEFC motors are limited to 20:1 constant torque Constant HP operation to twice base speed (143-256 frame);1.5 times base (all others) Optimized for operation with IGBT inverter (NEMA Design A) Normally closed thermostats (one per phase, class F) Blue Chip quality, cast iron frame and brackets Patented “fracket” design (TEBC enclosure)

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	16.68
CE:	Y
Connection Drawing Number:	A-EE7308T
Country of Origin:	United States of America
CSA:	Y
Current:	8.0/4.0
DE Bearing Size:	6207
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	90.2
Electrical Type:	Squirrel Cage Inverter Duty
Enclosure Type:	Totally Enclosed Non Ventilated
Frame Length (IN):	5.75
Frame Material:	Cast Iron
Frame Size:	182
Frame Suffix:	TC
Frame Type:	182TC
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	3
Insulation Class:	H
IP Code:	43
KVA Code:	K
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	INV
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6206
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS68429-575
Phases:	3
Power Factor:	80
Power Rating (HP):	3
Power Rating (kW):	2.2
Resistance Main:	3.76
Rotation:	Reversible
Service Factor:	1
Shaft Diameter (IN):	1.125
Shaft Extension:	2.62
Shaft Type:	T
Speed:	1760
Speed Max:	1760
Starting Type:	Inverter Only
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
