Y540 MAR

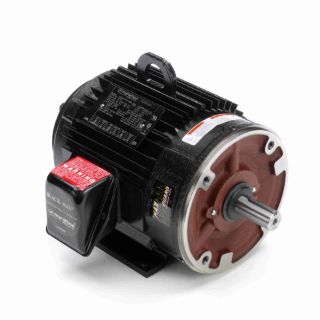

Picture of Y540 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
Y540
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,209.19 / EA

Description

Alternate Supplier #

184THTL7776

Features

MAX GUARD® Class F insulation system Constant Torque operation from 0 to base speed on Vector Drive Constant Horsepower operation up to twice base RPM Optimized for operation with IGBT inverter (NEMA Design A) Normally closed thermostats (one per phase, Class F) Encoder and brake provisions included on opposite drive end (maximum 10 lb-ft brake,see Modifications and/or Accessory Kits sections) Aluminum frame construction

Specifications

Assembly/Box Mounting:F1/F2 Capable
C Dim (IN):16.93
CE:Y
Connection Drawing Number:A-EE7308T
Country of Origin:United States of America
CSA:Y
Current:6.6/3.3
DE Bearing Size:6207
DE Bearing Type:Ball
Duty:Continuous
Efficiency:82.5
Electrical Type:Squirrel Cage Inverter Duty
Enclosure Type:Totally Enclosed Non Ventilated
Frame Length (IN):6.75
Frame Material:Aluminum
Frame Size:184
Frame Suffix:TC
Frame Type:184TC
Frequency:60
Harmonized Tariff Code:8501.52.4000
HP:2
Insulation Class:F
IP Code:43
KVA Code:L
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:INV
Number of Poles:6
Number of Speeds:1
ODE Bearing Size:6206
ODE Bearing Type:Ball
Outline Drawing Number:B-SS68967-675A
Phases:3
Power Factor:67.5
Power Rating (HP):2
Power Rating (kW):1.5
Resistance Main:6.45
Rotation:Reversible
Service Factor:1
Shaft Diameter (IN):1.125
Shaft Extension:2.62
Shaft Type:T
Speed:1160
Speed Max:1160
Starting Type:Inverter Only
Type of Overload Protector:No
UL:Recognized
Voltage:230/460

Resources

Spec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
TENV
Horsepower
2 HP
Speed Rating
1160
Type
Squirrel Cage Inverter Duty
Voltage Rating
230/460 V
