Y543A MAR

Name: Y543A MAR
Brand: Marathon Electric Motors
SKU: Y543A MAR
Price: 2,226.98 USD
Availability: OutOfStock

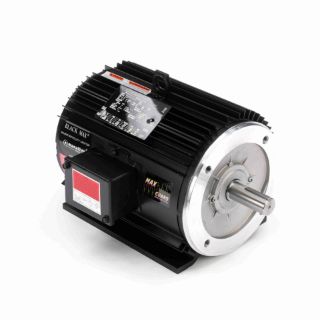

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y543A

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$2,226.98 / EA

Description

Alternate Supplier #

184THTY7726

Features

MAX GUARD® Class F insulation system Constant Torque operation from 0 to base speed on Vector Drive Constant Horsepower operation up to twice base RPM Optimized for operation with IGBT inverter (NEMA Design A) Normally closed thermostats (one per phase, Class F) Encoder and brake provisions included on opposite drive end (maximum 10 lb-ft brake,see Modifications and/or Accessory Kits sections) Aluminum frame construction

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	17.69
CE:	Y
Connection Drawing Number:	005010.20ME
Country of Origin:	Mexico
CSA:	Y
Current:	13.4/6.7
DE Bearing Size:	6207
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	89.5
Electrical Type:	Squirrel Cage Inverter Duty
Enclosure Type:	Totally Enclosed Non Ventilated
Frame Length (IN):	11.
Frame Material:	Aluminum
Frame Size:	184
Frame Suffix:	TC
Frame Type:	184TC
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	5
Insulation Class:	F
IP Code:	43
KVA Code:	L
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	INV
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6206
ODE Bearing Type:	Ball
Outline Drawing Number:	036109ME-1100
Phases:	3
Power Factor:	79
Power Rating (HP):	5
Power Rating (kW):	3.7
Resistance Main:	2.15
Rotation:	Reversible
Service Factor:	1
Shaft Diameter (IN):	1.125
Shaft Extension:	2.62
Shaft Type:	T
Speed:	1760
Speed Max:	1760
Starting Type:	Inverter Only
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
