Y548 MAR

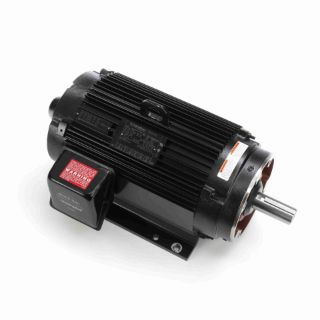

Picture of Y548 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
Y548
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$4,958.53 / EA

Description

Alternate Supplier #

256THTL5776

Features

MAX GUARD® Class F insulation system Constant Torque operation from 0 to base speed on Vector Drive Constant Horsepower operation up to twice base RPM Optimized for operation with IGBT inverter (NEMA Design A) Normally closed thermostats (one per phase, Class F) Encoder and brake provisions included on opposite drive end (maximum 10 lb-ft brake,see Modifications and/or Accessory Kits sections) Aluminum frame construction Reduced HP at 120 HZ

Specifications

Assembly/Box Mounting:F1/F2 Capable
C Dim (IN):26.87
CE:Y
Connection Drawing Number:A-EE7308T
Country of Origin:United States of America
CSA:Y
Current:28.0/14.0
DE Bearing Size:6309
DE Bearing Type:Ball
Duty:Continuous
Efficiency:89.5
Electrical Type:Squirrel Cage Inverter Duty
Enclosure Type:Totally Enclosed Non Ventilated
Frame Length (IN):14.75
Frame Material:Aluminum
Frame Size:256
Frame Suffix:TC
Frame Type:256TC
Frequency:60
Harmonized Tariff Code:8501.52.4000
HP:10
Insulation Class:F
IP Code:43
KVA Code:J
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:INV
Number of Poles:6
Number of Speeds:1
ODE Bearing Size:6206
ODE Bearing Type:Ball
Outline Drawing Number:B-SS330110E-1475
Phases:3
Power Factor:75.5
Power Rating (HP):10
Power Rating (kW):7.5
Resistance Main:.765
Rotation:Reversible
Service Factor:1
Shaft Diameter (IN):1.625
Shaft Extension:3.75
Shaft Type:T
Speed:1160
Speed Max:1160
Starting Type:Inverter Only
Type of Overload Protector:No
UL:Recognized
Voltage:230/460

Resources

Spec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
TENV
Horsepower
10 HP
Speed Rating
1160
Type
Squirrel Cage Inverter Duty
Voltage Rating
230/460 V
