Y549 MAR

Name: Y549 MAR
Brand: Marathon Electric Motors
SKU: Y549 MAR
Price: 3,990.60 USD
Availability: OutOfStock

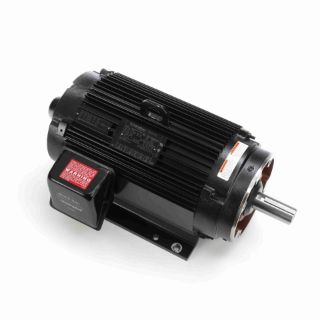

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y549

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

$3,990.60 / EA

Description

Alternate Supplier #

254THTL5726

Features

MAX GUARD® Class F insulation system Constant Torque operation from 0 to base speed on Vector Drive Constant Horsepower operation up to twice base RPM Optimized for operation with IGBT inverter (NEMA Design A) Normally closed thermostats (one per phase, Class F) Encoder and brake provisions included on opposite drive end (maximum 10 lb-ft brake,see Modifications and/or Accessory Kits sections) Aluminum frame construction Reduced HP at 120 HZ

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	26.87
CE:	Y
Connection Drawing Number:	A-EE7308T
Country of Origin:	United States of America
CSA:	Y
Current:	40.0/20.0
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	91.7
Electrical Type:	Squirrel Cage Inverter Duty
Enclosure Type:	Totally Enclosed Non Ventilated
Frame Length (IN):	14.75
Frame Material:	Aluminum
Frame Size:	254
Frame Suffix:	TC
Frame Type:	254TC
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	15
Insulation Class:	H
IP Code:	43
KVA Code:	K
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	INV
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6206
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS330110-1475
Phases:	3
Power Factor:	76
Power Rating (HP):	15
Power Rating (kW):	11.2
Resistance Main:	.448
Rotation:	Reversible
Service Factor:	1
Shaft Diameter (IN):	1.625
Shaft Extension:	3.75
Shaft Type:	T
Speed:	1765
Speed Max:	1765
Starting Type:	Inverter Only
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
