Y552 MAR

Name: Y552 MAR
Brand: Marathon Electric Motors
SKU: Y552 MAR
Price: 5,256.11 USD
Availability: OutOfStock

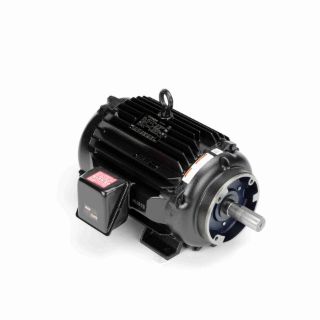

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y552

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$5,256.11 / EA

Description

Alternate Supplier #

256THTNA7026

Features

MAX GUARD® Class F insulation system Constant Torque operation from 0 to base speed on Vector Drive Constant Horsepower operation up to twice base RPM Optimized for operation with IGBT inverter (NEMA Design A) Normally closed thermostats (one per phase, Class F) Encoder and brake provisions included on opposite drive end (maximum 10 lb-ft brake,see Modifications and/or Accessory Kits sections)

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	27.13
CE:	Y
Connection Drawing Number:	A-EE7308T
Country of Origin:	United States of America
CSA:	Y
Current:	52.0/26.0
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	93.6
Electrical Type:	Squirrel Cage Inverter Duty
Enclosure Type:	Totally Enclosed Non Ventilated
Frame Length (IN):	14.25
Frame Material:	Cast Iron
Frame Size:	256
Frame Suffix:	TC
Frame Type:	256TC
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	20
Insulation Class:	F
IP Code:	43
KVA Code:	N
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	INV
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6210
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS203839-1425
Phases:	3
Power Factor:	77
Power Rating (HP):	20
Power Rating (kW):	14.9
Resistance Main:	.29
Rotation:	Reversible
Service Factor:	1
Shaft Diameter (IN):	1.625
Shaft Extension:	3.75
Shaft Type:	T
Speed:	1770
Speed Max:	1770
Starting Type:	Inverter Only
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
