Y596 MAR

Name: Y596 MAR
Brand: Marathon Electric Motors
SKU: Y596 MAR
Price: 3,751.25 USD
Availability: OutOfStock

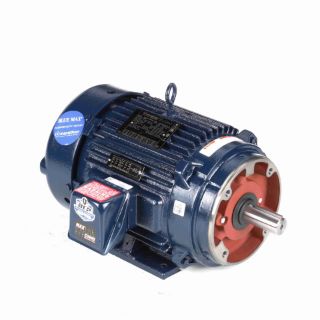

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y596

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$3,751.25 / EA

Description

Alternate Supplier #

215THFS8029

Features

MAX GUARD® Class H insulation system Constant torque operation from 0 to base speed on vector drive, including TEFC (On Volts/Hertz drives, TEFC motors are limited to 20:1 constant torque Constant HP operation to twice base speed (143-256 frame);1.5 times base (all others) Optimized for operation with IGBT inverter (NEMA Design A) Normally closed thermostats (one per phase, class F) Blue Chip quality, cast iron frame and brackets Patented “fracket” design (TEBC enclosure)

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	22.53
CE:	Y
Connection Drawing Number:	A-EE7308T
Country of Origin:	United States of America
CSA:	Y
Current:	25.4/12.7
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	90.2
Electrical Type:	Squirrel Cage Inverter Duty
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	8.75
Frame Material:	Cast Iron
Frame Size:	215
Frame Suffix:	TC
Frame Type:	215TC
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	10
Insulation Class:	H
IP Code:	43
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	INV
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6207
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS88574-875
Phases:	3
Power Factor:	81
Power Rating (HP):	10
Power Rating (kW):	7.5
Resistance Main:	.9
Rotation:	Reversible
Service Factor:	1
Shaft Diameter (IN):	1.375
Shaft Extension:	3.12
Shaft Type:	T
Speed:	1765
Speed Max:	1765
Starting Type:	Inverter Only
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
