Y647 MAR

Name: Y647 MAR
Brand: Marathon Electric Motors
SKU: Y647 MAR
Availability: OutOfStock

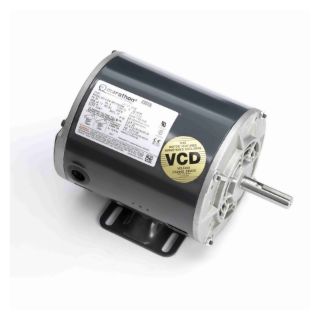

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

365TSTDS7904

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Marathon®

Type

2-Pole Continuous-Duty Split Phase

Description

Marathon® AC Motor, 2-Pole Continuous-Duty Split Phase, Fire Pump Motors Application, 100 hp, 200/400 VAC, 274/137 A, 60 Hz Frequency, 3 ph ph, 3550 rpm Speed, Drip-Proof Enclosure, 365TS Frame, 1.88 in Dia x 4 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 186 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class B, Cast Iron, 27.5 in L x 27.36 in W x 20.48 in H Dimensions

Application

For use with variable frequency drives

Standards

CE Certified | CSA LR2025

Features

Red paint on 25 hp through 250 hp
NEMA design B, code G or less
Dual voltage motors have 12 leads and are suitable for wye-delta or across the line start on either voltage or part winding start on low voltage
Squirrel cage induction run

Specifications

Amperage Rating:	274/137 A
Application Type:	Fire Pump Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	27.5 in L x 27.36 in W x 20.48 in H
Enclosure Type:	Drip-Proof
Frame:	365TS
Frequency Rating:	60 Hz
Horsepower:	100 hp
Insulation Class:	Class B
Material:	Cast Iron
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.88 in Dia x 4 in L
Speed:	3550 rpm
Temperature Rating:	40 deg C
Torque Rating:	186 ft-lb
Voltage Rating:	200/400 VAC
