Y824 MAR

Name: Y824 MAR
Brand: Marathon Electric Motors
SKU: Y824 MAR
Availability: OutOfStock

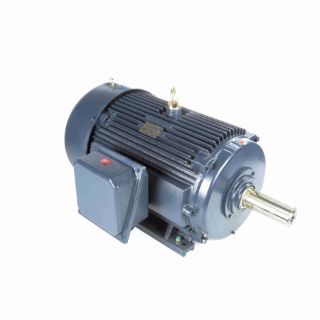

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y824

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

444TTFS8841

Features

Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration NEMA Design C 4140 Shaft Material Roller Bearing on Drive End for belted loads 1.15 Service Factor 80C rise at rated load Class F insulation Inpro® Smart Ring, rotating shaft seals on each end of shaft Internal and external epoxy paint Brass drain and breather Actual test and vibration data supplied with each motor

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	41.27
CE:	Y
Connection Drawing Number:	A-EE7300BH
Country of Origin:	United States of America
CSA:	Y
Current:	142.0
DE Bearing Size:	NU318
DE Bearing Type:	Roller
Duty:	Continuous
Efficiency:	94.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	18.5
Frame Material:	Cast Iron
Frame Size:	444
Frame Suffix:	T
Frame Type:	444T
Frequency:	60
Harmonized Tariff Code:	8501.53.4080
HP:	125
Insulation Class:	F
IP Code:	56
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	C
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6316
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS508879-1850
Phases:	3
Power Factor:	87
Power Rating (HP):	125
Power Rating (kW):	93.3
Resistance Main:	.031
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	3.375
Shaft Extension:	8.75
Shaft Type:	T
Speed:	1775
Speed Max:	1775
Starting Type:	Part Wdg Start & Wye Start Delta Run
Type of Overload Protector:	No
UL:	No
Voltage:	460
