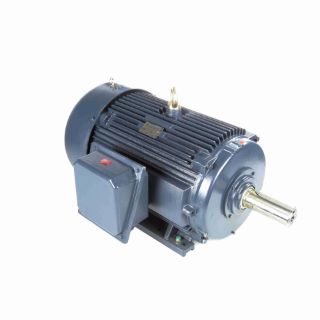

Y826A MAR

Product Details

Manufacturer part number:
Y826A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

445TTFN14571

Features

Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration NEMA Design C 4140 Shaft Material Roller Bearing on Drive End for belted loads 80° C rise at rated load Class F insulation Inpro® Smart Ring, rotating shaft seals on each end of shaft Internal and external epoxy finish Brass drain and breather? Leads for WYE-DELTA, part winding on low voltage, or across-the-line starting Will become build-up item when current stock is gone

Specifications

Assembly/Box Mounting:F1/F2 CAPABLE
C Dim (IN):43.34
CE:Y
Connection Drawing Number:A-EE7300U
Country of Origin:United States of America
CSA:Y
Current:174.0
DE Bearing Size:NU318
DE Bearing Type:Roller
Duty:Continuous
Efficiency:95
Electrical Type:Squirrel Cage Induction Run
Enclosure Type:Totally Enclosed Fan Cooled
Frame Length (IN):2.27
Frame Material:Cast Iron
Frame Size:445
Frame Suffix:T
Frame Type:445T
Frequency:60
HP:150
Insulation Class:F
IP Code:55
KVA Code:G
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:C
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6316
ODE Bearing Type:Ball
Outline Drawing Number:B-SS513797-2025
Phases:3
Power Factor:85.5
Power Rating (HP):150
Power Rating (kW):112.0
Resistance Main:.025
Rotation:Reversible
Service Factor:1.15
Shaft Diameter (IN):3.375
Shaft Extension:8.75
Shaft Type:T
Speed:1785
Speed Max:1785
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:460

Products Specifications

Horsepower
150 HP
